| | Overview |  | Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement

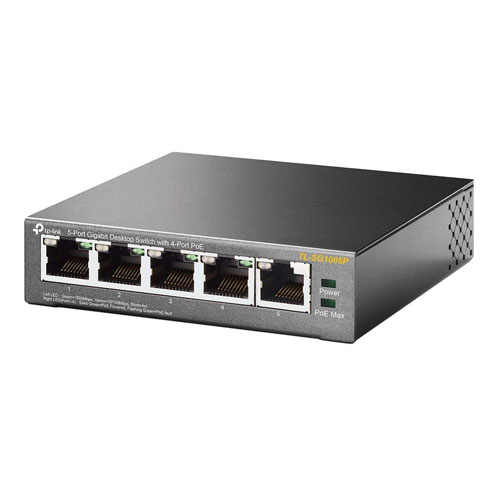

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4. | |
| | Features | | - 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
| |
| | Specifications | | | Interface | | 5 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX) | | Network Media | | 10BASE-T,100BASE-TX,1000BASE-T | | Fan Quantity | | Fanless | | External Power Supply | | External Power Adapter(Output: 48VDC / 1.25A) | | PoE Ports (RJ45) | | Standard: 802.3 af compliant/PoE Ports: Port1- Port4/Power Supply: 56W | | Backbound Bandwidth | | 10Gbps | | Mac Address Table | | 2K | | Dimensions ( W x D x H ) | | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) | | | | |
| |
|
