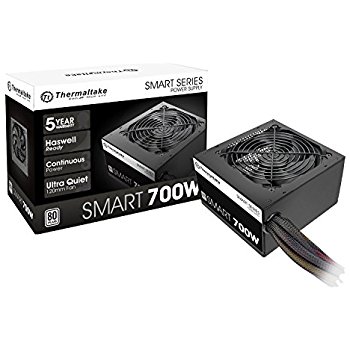

| | Overview |  | Thermaltake Smart 700W
Incorporating various high-quality components, the Smart Series models are rated from 500W to 700W saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. | |
| | Features | | - 120mm Ultra Quiet Fan
- Multiple Connectors
- 80 PLUS Standard Certified and Haswell Ready
- High-Quality Components
- Single +12V Output
| |
| | Specifications | | | Type | | Intel ATX 12V 2.3 | | Max. Output Capacity | | 700W | | Color | | Black | | Dimension (H x W x D) | | 86mm x 150mm x 140mm | | PFC (Power Factor Correction) | | Active PFC | | Power Good Signal | | 100-500 msec | | Hold Up Time | | 16msec (minimum) within 60% load | | Input current | | 12A max | | Input Frequency Range | | 50 Hz - 60 Hz | | Input Voltage | | 100Vac – 240Vac | | Operating Temperature | | -40 to +55 | | Operating Humidity | | 10% to 95%, non-condensing | | Cooling System | | 120mm Fan: 1800 R.P.M. ± 10% | | Efficiency | | 82-86% efficiency @ 20-100% load | | MTBF | | 100,000 hrs minimum | | Safety Approval | | CE/CB/TUV/ UL/ FCC | | PCI-E Connector | | PCI-E 6+2pin x 2 | | | | |
| |
|
